bullet Control, Balancers and Instruments

Car Body Repair Range

ITEM 3460Car Body Repair Item

Extremely versatile, it is the ideal equipment for the repairs in car body shops. It allows to single-spot weld rivets, screws, self-threading rivets, washers and pins. It is possible to perform shrinking. A quick straightening of panels is carried out thanks to the 3 point star on the percussion extractor. Improved versatility to allow the use of different accessories for sheets straightening



ITEM 3481

Car Body Repair ItemSuitable for Car body repairing work : Resistance spot welding of sheets, sheet straightening with spotter (nails or washers), localised sheets heating with carbon electrode, screws and rivets welding, inox sheet-metals spotting.

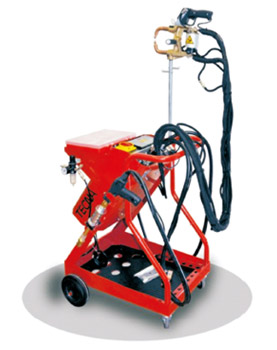

ITEM 3450

Car Body Repair ItemSuitable for Car body shop repairing work : Resistance spot welding of sheets, sheet straightening with spotter (nails or washers), localised sheets heating with carbon electrode, screws and rivets welding, inox sheet-metals spotting.

Synchronous digital welding control unit TE95 with double program, welding time adjustment in cycles and pulses; welding current adjustment and compensation function.

Allow simultaneous connection of two tools with automatic recall of the relevant memorized welding program, enabling to save time, avoid errors so to have a simple and safe working process.

The welding station with epoxy-coated transformers, is supplied equipped with:

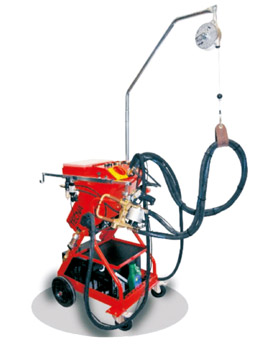

ITEM 3650 MFDC

Car Body Repair ItemCar body shop repairing work: spot welding with "X" and "C" gun; single sided and twin spot welding; welding of nails and washers for sheet straightening (spotter function); localised heating with carbon electrode; screws and rivets welding, sheet-metals spotting.

By means of the inverter technology that allows a constant and high welding current, not influenced by the variation of the supply voltages and by the secondary circuit conditions, the quality of the spot is improved also on galvanized sheets. The high current value allows to reduce welding time resulting in a longer electrodes life. The reduced absorption balanced on the three phases reduces the connecting and consumption costs.

Analog welding control unit with potentiometer, with two independent programs, welding time adjustment in cycles, pulses, welding current adjustment and compensation function. Allow simultaneous connection of two tools with automatic recall of the relevant memorized welding program, enabling to save time, avoid errors so to have a simple and safe working process.
